ACDC Three Phase Protection Relay Tester VLUUKE Accurate Differential

Description

Product Overview

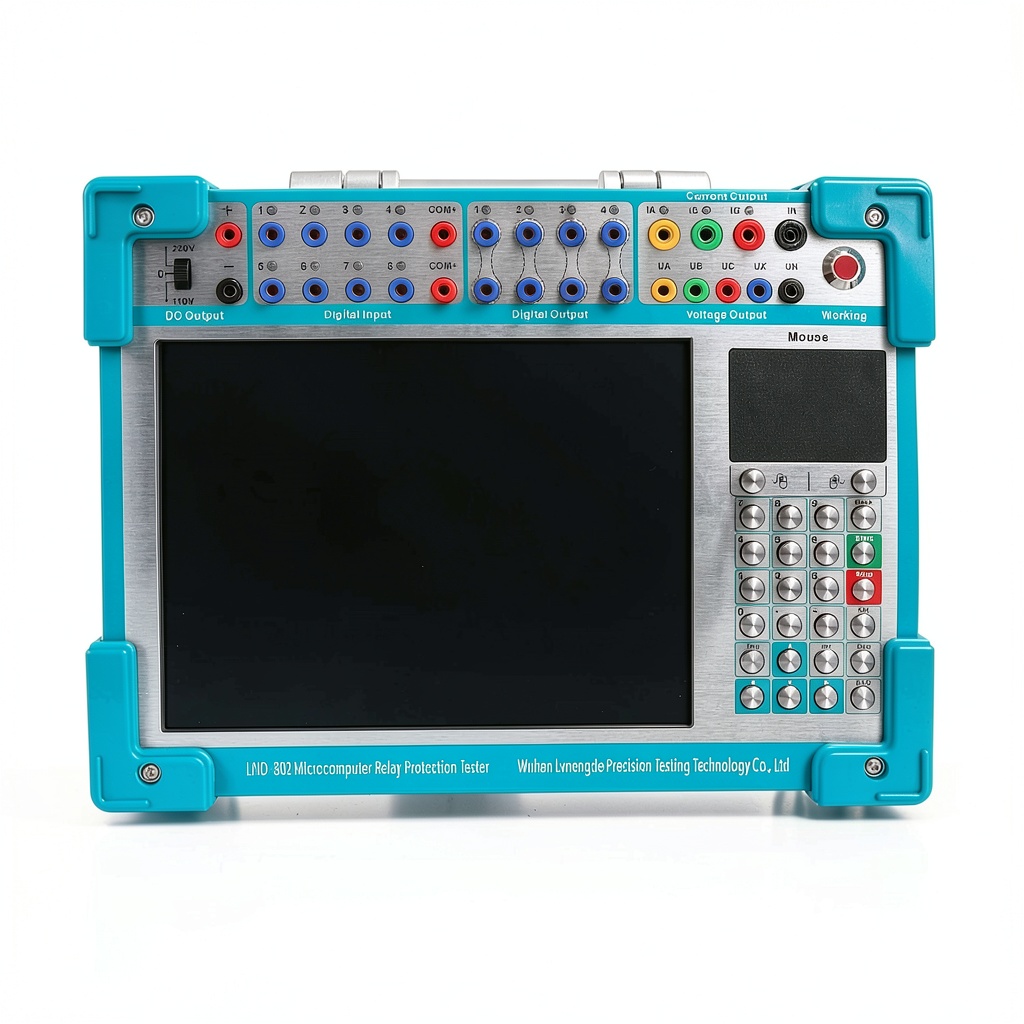

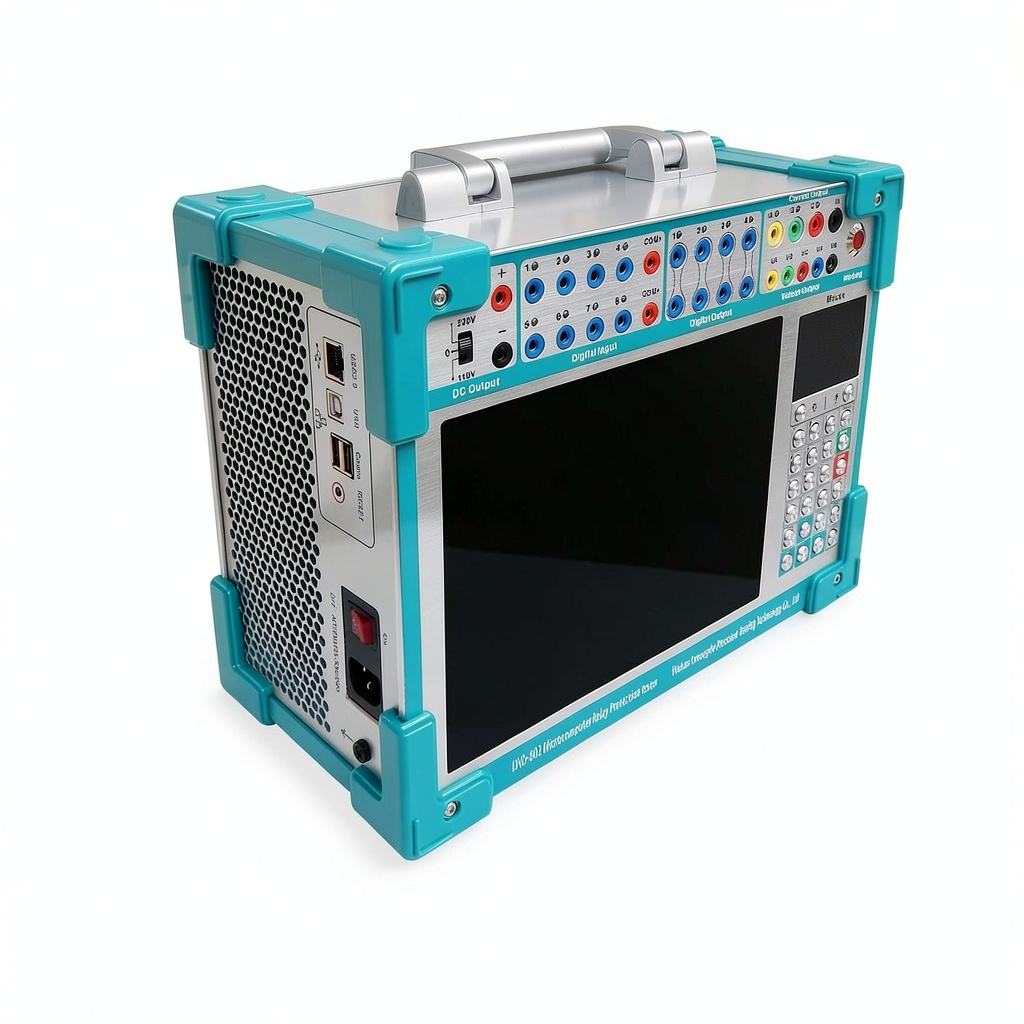

The VLUUKE ACDC Three Phase Protection Relay Tester is engineered to meet the rigorous demands of modern industrial electrical testing. Built around a high‑performance embedded industrial control computer, the device runs on a stable Windows XP platform, providing a familiar and reliable user interface for technicians. Its core architecture combines a DSP and FPGA control board with a 16‑bit DAC output, enabling the generation of up to 2000 high‑density sine waves per week for fundamental wave analysis. The power amplifier utilizes a high‑fidelity linear design, guaranteeing both the accuracy of low‑current measurements and the stability of high‑current outputs. A USB interface allows direct communication with a PC without the need for additional adapters, simplifying data transfer and firmware updates. The tester also incorporates an automatic self‑calibration routine that continuously monitors and adjusts internal parameters, delivering consistent accuracy over extended periods of operation. Designed for durability, the chassis is constructed from rugged metal alloys with reinforced corners, ensuring resistance to drops, vibrations, and harsh environmental conditions commonly encountered in factory floors and field service locations.

Usage

This tester is ideal for a wide range of applications, including routine maintenance of three‑phase protection relays, verification of differential current settings, and troubleshooting of phase‑monitoring systems in power distribution networks. Engineers and technicians can employ the device in substations, manufacturing plants, and remote field sites where reliable phase protection is critical. The intuitive Windows XP interface guides users through step‑by‑step test procedures, allowing quick configuration of injection currents, waveform selection, and result logging. The USB connectivity enables seamless integration with analysis software on a laptop or desktop computer, facilitating real‑time data visualization, report generation, and archival of test results for compliance documentation. Because the tester supports secondary current injection, it can be used without disconnecting the primary power circuit, minimizing downtime and enhancing safety during on‑site inspections. Its compact form factor and built‑in handle make it easy to transport in a standard tool bag, while the robust power supply ensures operation in environments ranging from 0 °C to 45 °C with humidity up to 90 % non‑condensing.

Why Choose Us

Choosing the VLUUKE ACDC Three Phase Protection Relay Tester means selecting a solution backed by years of expertise in industrial electrical testing equipment. VLUUKE’s commitment to quality is reflected in the meticulous selection of components, rigorous factory testing, and a comprehensive warranty that covers both hardware and software support. The device’s self‑calibration feature reduces the need for external calibration services, lowering total cost of ownership. Additionally, VLUUKE provides dedicated technical assistance, offering remote troubleshooting, firmware updates, and on‑site training to ensure that customers extract maximum value from their investment. The combination of high‑precision measurement capability, user‑friendly software, and durable construction positions this tester as a reliable partner for any organization seeking to maintain the integrity of its phase protection infrastructure.

Key Features

• High‑performance embedded PC with Windows XP interface for easy operation
• Self‑calibration function that maintains accuracy without external services
• Linear power amplifier delivering stable current injection from micro‑amps to several amps

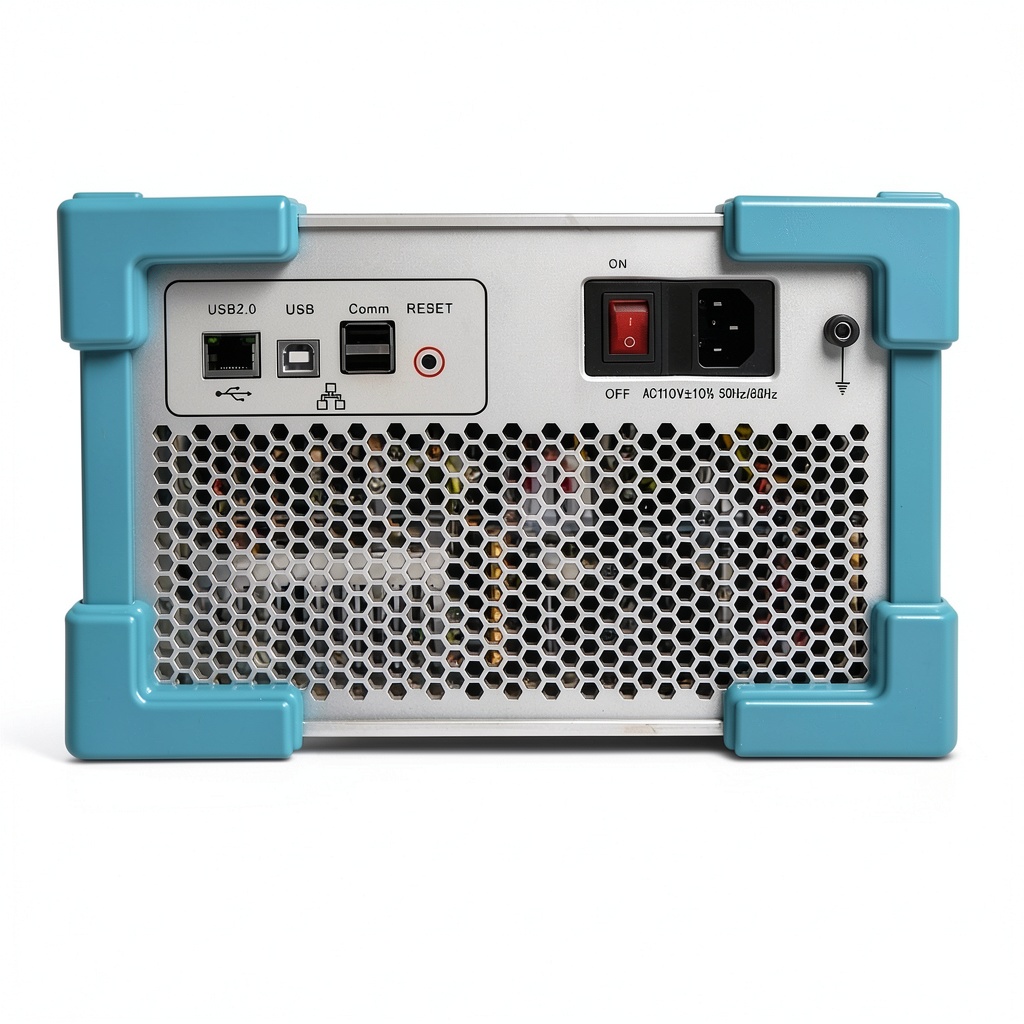

• Direct USB connection to PC eliminates the need for additional adapters
• Comprehensive technical support and warranty for peace of mind

FAQ

What types of relays can be tested with this device?

The tester is compatible with most three‑phase protection relays that accept secondary current injection, including differential, over‑current, and distance relays from major manufacturers.

Is any special software required for data analysis?

All necessary software is included on the device’s internal storage and runs on Windows XP. It can also export data in CSV format for use with third‑party analysis tools.

How often should the device be calibrated?

Thanks to the built‑in self‑calibration routine, routine external calibration is rarely needed. However, for critical applications, a professional calibration is recommended annually.

Can the tester operate in harsh environmental conditions?

Yes, the unit is rated for operation from 0 °C to 45 °C with humidity up to 90 % non‑condensing, and its rugged metal chassis protects against drops and vibrations.

What is the warranty period for this product?

VLUUKE offers a standard two‑year warranty covering both hardware defects and software updates, with optional extended service plans available.
