Time Mark 20 Series 3-Phase Monitor UL-Listed Relay with LED Status

Description

Product Overview

The Time Mark 20 Series 3‑Phase Monitor relay is engineered to deliver precise and continuous monitoring of three‑phase electrical systems in demanding industrial environments. Built to meet rigorous UL standards for both the United States and Canada, this device combines robust construction with intuitive LED status indicators, allowing technicians to quickly assess system health at a glance. Its operating voltage range of 190‑480 VAC ensures compatibility with a wide variety of power supplies, while the compact DIN‑rail or surface‑mount design facilitates seamless integration into existing control panels without sacrificing valuable space.

Designed with a focus on reliability, the relay incorporates advanced detection algorithms that instantly recognize phase loss, phase reversal, over‑voltage, under‑voltage, and voltage unbalance conditions. When any anomaly is detected, the corresponding LED indicator illuminates, providing immediate visual feedback that helps prevent equipment damage and costly downtime. The device’s UL recognition further assures users that it complies with stringent safety and performance criteria, making it a trusted component for critical applications such as motor drives, HVAC systems, and automated manufacturing lines.

Construction of the Time Mark 20 Series relay utilizes high‑grade insulating materials and a rugged metal enclosure that resists corrosion, vibration, and temperature extremes commonly encountered in factory floors and outdoor installations. The internal circuitry is protected by a sealed housing, reducing the risk of moisture ingress and extending the product’s operational lifespan. Additionally, the relay’s modular design allows for straightforward replacement or upgrade, minimizing service interruptions and supporting a proactive maintenance strategy that aligns with modern asset management practices.

Installation is simplified by the dual‑mounting options: a standard DIN rail slot for quick snap‑in placement, or a surface‑mount configuration for custom panel layouts. Clear labeling on the front panel guides users through wiring connections, and the included terminal blocks accommodate a range of wire gauges, ensuring secure and reliable electrical contact. Detailed wiring diagrams and a comprehensive user manual are provided, enabling engineers and electricians to complete the setup with confidence and adhere to best‑practice wiring standards.

Compatibility extends beyond basic voltage monitoring; the relay can be integrated with programmable logic controllers (PLCs), supervisory control and data acquisition (SCADA) systems, and other industrial automation platforms via standard input/output signals. This flexibility allows the Time Mark 20 Series to serve as a central node in comprehensive power quality monitoring solutions, delivering real‑time data that can be logged, analyzed, and acted upon to optimize energy efficiency and maintain system integrity across diverse operational scenarios.

Beyond UL recognition, the Time Mark 20 Series also meets CSA standards for Canadian markets and conforms to IEC 60204‑1 requirements for safety of machinery electrical equipment. These multiple certifications provide assurance that the relay has undergone extensive electromagnetic compatibility (EMC) testing, temperature cycling, and overload endurance trials. As a result, users can deploy the device in environments that demand strict adherence to international safety codes, confident that the relay will not introduce interference or fail under extreme operating conditions. The comprehensive compliance package simplifies the approval process for system integrators, reducing the time and resources needed to certify complete control panels for regulatory inspection.

Reliability is further enhanced by the relay’s self‑diagnostic capabilities, which continuously monitor internal health parameters such as coil resistance and temperature. When a potential failure is detected, the device logs the event and triggers the LED warning system, allowing maintenance personnel to schedule preventive service before a catastrophic outage occurs. This proactive approach reduces unplanned downtime and aligns with predictive maintenance strategies commonly employed in modern industrial facilities. The relay’s low power consumption also contributes to overall system efficiency, minimizing the load on auxiliary power supplies and extending battery backup life where applicable.

Customers can select from a range of optional accessories to tailor the relay to specific project requirements. Available options include terminal block kits with different wire gauge ratings, protective surge suppressors for environments with frequent transients, and mounting brackets designed for compact enclosures. These accessories are engineered to maintain the same UL‑listed quality standards as the base unit, ensuring that any added components do not compromise overall system safety or performance. By offering a modular accessory ecosystem, Time Mark enables users to build a complete monitoring solution that fits precisely within their existing infrastructure.

Installation flexibility is complemented by the relay’s intelligent communication options. While the primary interface is a set of discrete contacts for direct PLC wiring, optional modules enable Modbus RTU or Ethernet/IP connectivity for integration into larger SCADA networks. This capability allows real‑time data from the relay to be aggregated with other process variables, facilitating advanced analytics such as harmonic distortion assessment and predictive failure modeling. The modular communication architecture ensures that the Time Mark 20 Series can evolve alongside your plant’s digital transformation initiatives, supporting both legacy systems and next‑generation IoT platforms.

The Time Mark 20 Series comes with a standard three‑year limited warranty that covers manufacturing defects and includes free technical support for the warranty period. In addition, the company offers extended warranty options and service contracts that provide annual calibration, on‑site inspection, and priority parts replacement. This comprehensive coverage ensures that the relay remains a reliable component throughout its expected service life of ten years or more, giving end‑users confidence in long‑term operational stability and cost predictability.

Usage

In manufacturing facilities where motor loads are critical, the Time Mark 20 Series relay safeguards equipment by detecting early signs of phase imbalance that could otherwise lead to overheating, reduced efficiency, or premature bearing wear. By alerting operators through its LED status panel, maintenance teams can intervene before a fault escalates, thereby preserving productivity and extending the service life of high‑value assets.

For commercial building management, the relay provides a reliable method to monitor HVAC compressors and large lighting arrays, ensuring that power quality remains within acceptable limits. Its ability to signal both over‑voltage and under‑voltage events helps protect sensitive control electronics from voltage spikes caused by utility fluctuations, while the phase reversal detection prevents reverse rotation of three‑phase motors that could cause mechanical damage.

In remote or off‑grid installations such as mining sites or renewable energy farms, the Time Mark 20 Series offers a rugged solution that can withstand harsh environmental conditions. The device’s sealed enclosure and wide operating temperature range make it suitable for outdoor panels exposed to dust, moisture, and temperature swings, while its clear LED indicators enable field technicians to perform rapid diagnostics without the need for specialized handheld equipment.

When paired with modern PLCs, the relay’s status outputs can be incorporated into automated shutdown sequences, triggering protective relays or alarms to isolate faulty sections of the power network. This integration supports advanced fault‑tolerant designs that maintain overall system stability even when individual components experience abnormal conditions, thereby reducing the risk of cascading failures.

Energy managers can also leverage the relay’s voltage monitoring capabilities to identify periods of voltage sag or swell, informing decisions about power factor correction, load balancing, and the deployment of voltage regulation equipment. By providing accurate, real‑time data, the Time Mark 20 Series contributes to a holistic approach to power quality management that aligns with sustainability goals and regulatory compliance requirements.

In process automation lines where precise timing and synchronization are essential, the Time Mark 20 Series relay helps maintain balanced three‑phase power to prevent timing drift and motor desynchronization. By continuously monitoring voltage symmetry, the relay can trigger corrective actions such as adjusting variable frequency drives (VFDs) or initiating load shedding to restore balance. This capability is especially valuable in high‑speed assembly lines, robotic workcells, and packaging equipment where even minor power disturbances can lead to product defects or equipment wear. The real‑time feedback provided by the LED status panel also assists operators in quickly diagnosing issues without interrupting production.

Data centers and server farms rely on stable three‑phase power to keep critical IT equipment running without interruption. The Time Mark 20 Series relay can be installed on the main distribution board to safeguard against phase anomalies that might cause server reboots, data loss, or hardware damage. Its fast response time and clear visual alerts enable facilities managers to coordinate with utility providers for rapid corrective action, while the relay’s ability to log events supports compliance reporting for industry standards such as ISO 27001. By integrating the relay into the power monitoring infrastructure, organizations can achieve higher uptime and protect valuable digital assets.

Why Choose Us

Choosing the Time Mark 20 Series means partnering with a brand that has a long history of delivering dependable industrial electrical components. Time Mark’s commitment to quality is reflected in the rigorous testing processes each unit undergoes, including thermal cycling, vibration analysis, and electrical stress testing, ensuring that the relay performs reliably under the most demanding conditions.

Our customer support network spans North America, offering technical assistance from certified engineers who can guide you through installation, configuration, and troubleshooting. We provide comprehensive documentation, firmware updates when applicable, and a responsive warranty service that addresses any manufacturing defects promptly, reinforcing our dedication to long‑term customer satisfaction.

In addition to the core product features, we emphasize sustainability by designing relays that are recyclable at the end of their lifecycle and by minimizing hazardous substances in compliance with RoHS directives. This environmentally conscious approach not only meets regulatory standards but also aligns with the growing expectations of businesses seeking greener supply chain solutions.

Our distribution partners ensure fast and reliable delivery, with inventory strategically positioned to reduce lead times for critical projects. Whether you are upgrading an existing control system or specifying a new installation, the Time Mark 20 Series is readily available, backed by a proven track record of performance and a reputation for durability that engineers trust.

Finally, the modular nature of the relay allows for easy scalability; as your facility expands or your monitoring requirements evolve, additional units can be added without redesigning the entire control architecture. This flexibility translates into cost savings and future‑proofing, enabling you to adapt to emerging technologies and changing operational demands with minimal disruption.

The engineering team behind the Time Mark 20 Series invests heavily in research and development to stay ahead of emerging power quality challenges. By collaborating with industry partners and monitoring trends in renewable energy integration, the team continuously refines the relay’s detection algorithms to improve sensitivity and reduce false positives. This forward‑looking approach ensures that the product remains relevant as grid conditions evolve, providing users with a future‑proof solution that can adapt to new standards such as IEEE 1547 for distributed generation interconnection. Customers benefit from a device that not only meets today’s requirements but also anticipates tomorrow’s needs.

Time Mark also prioritizes after‑sales support through a network of certified service centers that can perform on‑site calibration, firmware upgrades, and component replacements. Clients receive access to an online portal where they can download technical manuals, view troubleshooting guides, and submit service tickets that are addressed within defined response windows. This comprehensive support framework reduces total cost of ownership by minimizing downtime and extending the functional lifespan of the relay. Moreover, the company offers training workshops and webinars to educate users on best practices for phase monitoring, ensuring that the technology is leveraged to its fullest potential across diverse applications.

Key Features

• Detects phase loss, reversal, voltage imbalance, over‑ and under‑voltage for comprehensive protection
• Clear LED status indicators provide instant visual alerts, reducing response time
• UL‑listed for U.S. and Canada, guaranteeing compliance with strict safety standards
• Versatile DIN‑rail or surface‑mount design fits a wide range of panel configurations
• Dedicated technical support and warranty service ensure reliable after‑sales assistance

FAQ

What voltage range does the relay support?

The Time Mark 20 Series operates from 190 VAC up to 480 VAC, covering most standard three‑phase industrial power supplies.

Can the relay be integrated with a PLC?

Yes, the relay provides standard discrete output signals that can be connected to PLC input modules, allowing seamless integration into automated monitoring and control schemes.

Is the device suitable for outdoor installations?

Its sealed metal enclosure and wide temperature rating make the relay appropriate for outdoor panels, provided it is mounted in a weather‑protected enclosure as recommended in the installation guide.

How does the LED status indicator work?

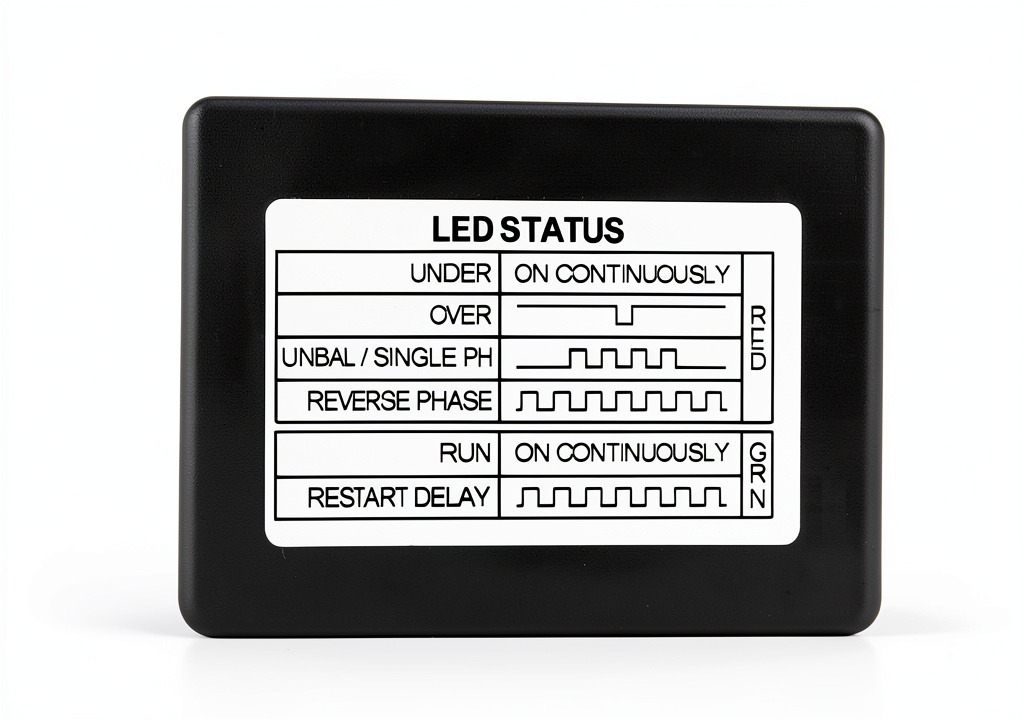

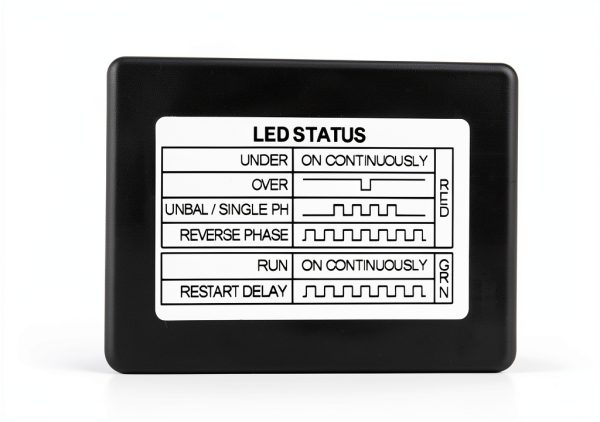

Each LED corresponds to a specific condition—normal operation, phase loss, voltage abnormality, or unbalance—illuminating in distinct colors to help technicians quickly identify the nature of the fault.
